Product Overview
Advanced architectural porcelains, due to their special crystal framework and chemical bond attributes, reveal efficiency advantages that steels and polymer materials can not match in severe settings. Alumina (Al ₂ O FIVE), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si four N FOUR) are the 4 significant mainstream engineering porcelains, and there are vital distinctions in their microstructures: Al two O two comes from the hexagonal crystal system and relies upon strong ionic bonds; ZrO two has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and gets special mechanical residential or commercial properties through stage modification strengthening device; SiC and Si Three N ₄ are non-oxide porcelains with covalent bonds as the primary component, and have more powerful chemical security. These structural distinctions directly result in significant differences in the preparation procedure, physical properties and engineering applications of the 4. This article will systematically assess the preparation-structure-performance partnership of these 4 porcelains from the point of view of products scientific research, and explore their prospects for industrial application.

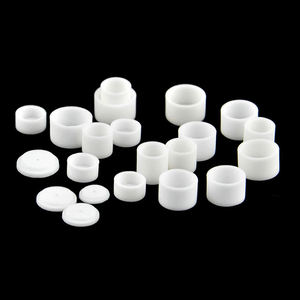

(Alumina Ceramic)
Preparation process and microstructure control
In terms of prep work process, the 4 porcelains show noticeable distinctions in technical courses. Alumina ceramics utilize a relatively standard sintering process, generally making use of α-Al ₂ O six powder with a pureness of greater than 99.5%, and sintering at 1600-1800 ° C after dry pushing. The trick to its microstructure control is to hinder abnormal grain growth, and 0.1-0.5 wt% MgO is generally included as a grain boundary diffusion inhibitor. Zirconia porcelains need to present stabilizers such as 3mol% Y TWO O five to preserve the metastable tetragonal phase (t-ZrO ₂), and use low-temperature sintering at 1450-1550 ° C to avoid excessive grain growth. The core procedure challenge depends on precisely controlling the t → m phase transition temperature window (Ms point). Considering that silicon carbide has a covalent bond ratio of approximately 88%, solid-state sintering needs a heat of greater than 2100 ° C and counts on sintering aids such as B-C-Al to form a liquid stage. The reaction sintering approach (RBSC) can attain densification at 1400 ° C by penetrating Si+C preforms with silicon melt, but 5-15% free Si will stay. The prep work of silicon nitride is one of the most intricate, typically making use of general practitioner (gas pressure sintering) or HIP (hot isostatic pushing) procedures, adding Y ₂ O SIX-Al two O six series sintering aids to create an intercrystalline glass phase, and heat therapy after sintering to crystallize the glass stage can significantly boost high-temperature performance.

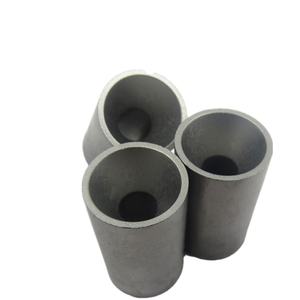

( Zirconia Ceramic)
Contrast of mechanical residential properties and reinforcing system
Mechanical buildings are the core analysis indications of architectural porcelains. The 4 kinds of materials reveal entirely various conditioning mechanisms:

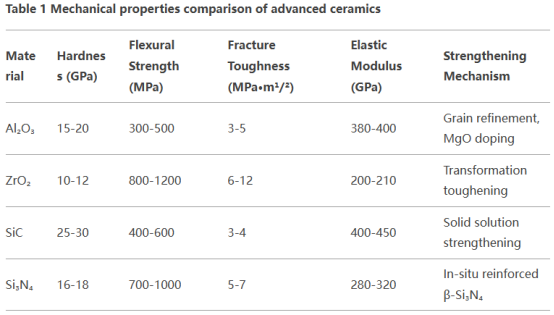

( Mechanical properties comparison of advanced ceramics)
Alumina mainly counts on fine grain conditioning. When the grain size is minimized from 10μm to 1μm, the toughness can be increased by 2-3 times. The outstanding strength of zirconia originates from the stress-induced stage makeover device. The stress field at the fracture idea triggers the t → m phase transformation come with by a 4% volume growth, resulting in a compressive anxiety protecting result. Silicon carbide can boost the grain boundary bonding stamina through strong service of components such as Al-N-B, while the rod-shaped β-Si four N ₄ grains of silicon nitride can produce a pull-out result similar to fiber toughening. Fracture deflection and connecting add to the improvement of strength. It deserves keeping in mind that by building multiphase ceramics such as ZrO ₂-Si Two N ₄ or SiC-Al Two O SIX, a selection of strengthening devices can be worked with to make KIC surpass 15MPa · m ONE/ TWO.
Thermophysical buildings and high-temperature behavior
High-temperature security is the essential benefit of architectural porcelains that differentiates them from standard products:

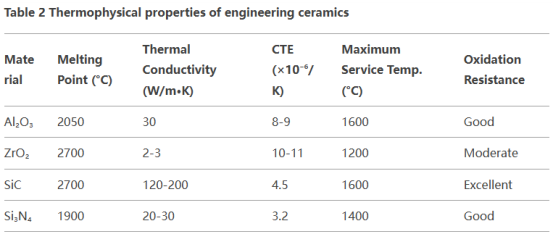

(Thermophysical properties of engineering ceramics)
Silicon carbide displays the most effective thermal monitoring performance, with a thermal conductivity of as much as 170W/m · K(similar to aluminum alloy), which is due to its easy Si-C tetrahedral framework and high phonon breeding price. The reduced thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have superb thermal shock resistance, and the critical ΔT worth can reach 800 ° C, which is especially appropriate for repeated thermal biking environments. Although zirconium oxide has the greatest melting factor, the softening of the grain limit glass phase at heat will trigger a sharp drop in strength. By adopting nano-composite technology, it can be increased to 1500 ° C and still maintain 500MPa strength. Alumina will experience grain border slide above 1000 ° C, and the enhancement of nano ZrO two can create a pinning result to hinder high-temperature creep.
Chemical security and corrosion behavior
In a corrosive setting, the 4 types of porcelains display dramatically various failing devices. Alumina will dissolve externally in strong acid (pH <2) and strong alkali (pH > 12) remedies, and the deterioration rate rises greatly with increasing temperature, getting to 1mm/year in boiling focused hydrochloric acid. Zirconia has great resistance to inorganic acids, yet will certainly go through reduced temperature level deterioration (LTD) in water vapor atmospheres over 300 ° C, and the t → m phase change will bring about the formation of a tiny crack network. The SiO two safety layer based on the surface of silicon carbide provides it excellent oxidation resistance below 1200 ° C, yet soluble silicates will certainly be produced in molten alkali steel atmospheres. The corrosion actions of silicon nitride is anisotropic, and the corrosion price along the c-axis is 3-5 times that of the a-axis. NH Five and Si(OH)₄ will certainly be produced in high-temperature and high-pressure water vapor, leading to material cleavage. By maximizing the composition, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be raised by greater than 10 times.

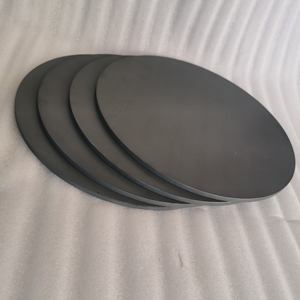

( Silicon Carbide Disc)
Regular Design Applications and Situation Research
In the aerospace field, NASA makes use of reaction-sintered SiC for the leading edge elements of the X-43A hypersonic aircraft, which can stand up to 1700 ° C wind resistant heating. GE Aeronautics utilizes HIP-Si three N four to make wind turbine rotor blades, which is 60% lighter than nickel-based alloys and permits greater operating temperatures. In the clinical area, the fracture toughness of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the service life can be reached more than 15 years via surface slope nano-processing. In the semiconductor sector, high-purity Al two O two porcelains (99.99%) are used as tooth cavity products for wafer etching tools, and the plasma corrosion price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high production expense of silicon nitride(aerospace-grade HIP-Si three N four gets to $ 2000/kg). The frontier development instructions are concentrated on: ① Bionic framework style(such as covering layered framework to raise durability by 5 times); ② Ultra-high temperature sintering modern technology( such as stimulate plasma sintering can attain densification within 10 minutes); three Smart self-healing ceramics (consisting of low-temperature eutectic stage can self-heal fractures at 800 ° C); four Additive production innovation (photocuring 3D printing accuracy has reached ± 25μm).
( Silicon Nitride Ceramics Tube)
Future growth patterns
In a thorough contrast, alumina will certainly still control the standard ceramic market with its price advantage, zirconia is irreplaceable in the biomedical field, silicon carbide is the favored material for extreme settings, and silicon nitride has wonderful possible in the area of premium devices. In the following 5-10 years, through the combination of multi-scale structural policy and smart manufacturing innovation, the efficiency boundaries of engineering porcelains are expected to attain new innovations: for instance, the style of nano-layered SiC/C ceramics can accomplish strength of 15MPa · m ¹/ ², and the thermal conductivity of graphene-modified Al two O four can be enhanced to 65W/m · K. With the advancement of the “double carbon” approach, the application range of these high-performance porcelains in brand-new power (gas cell diaphragms, hydrogen storage space materials), green manufacturing (wear-resistant parts life raised by 3-5 times) and other areas is expected to maintain an ordinary yearly development rate of more than 12%.
